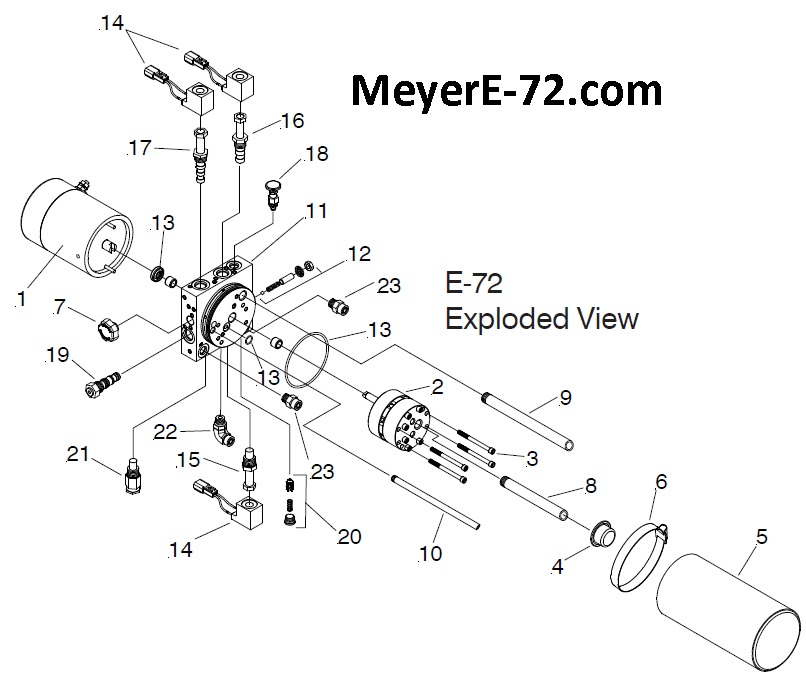

Meyer E-72 Exploded View & Parts List

ITEM	E-72 12V	E-72 24V	QTY	DESCRIPTION
	16006	16007	1	Lift Assembly (Unit Only)
1	15096	15154	1	Motor (2 Terminal)
2	15097	15097	1	Pump Assembly
3	15083	15083	4	Allen Head Screw 1/4-20 x 3"
4	15101	15101	1	Pump Filter Assembly
5	15169	15169	1	Reservoir
6	15066	15066	1	Reservoir Clamp
7	15067	15067	1	Reservoir Breather
8	15100	15100	1	Oil Pick up Tube 5-3/4"
9	15099	15099	1	Oil Return Tube 8"
10	15180	15180	1	Oil Return Tube 8"
11	15175	15175	1	Base Assembly
12	15121	15121	1	Adjustable Relief Valve
13	15082	15082	1	Seal Kit (All Seals)
14	15150	15150	3	Coil (12v or 24v)
15	15146	15146	1	"A" Cartridge Valve
16	15117	15117	1	"B" Cartridge Valve
17	15111	15111	1	"C" Cartridge Valve
18	15165	15165	1	Kit Needle Valve (Lower Adj.)
19	15148	15148	1	Kit Dual Pilot Check Valve
20	15152	15152	1	Kit Check Valve Assembly
21	15179	15179	1	Kit Relief Valve Assembly 3000 psi
22	22866	22866	1	90 Degree Elbow Fitting
23	22868	22868	2	Straight Fitting
--	SBS72PLUG	SBS72PLUG	2	Fill Plug For Reservoir (not pictured)

Because this unit is so new, we are not stocking and offering every part for sale. Once there is a demand, we will start stocking and offering them. We have to stock the Coils and Valves because we have so many units in the field that are covered under the original 5 year warranty. In the past 7 years to date, we have changed one A Valve that was defective on a new unit, and one Coil that was 2 years old, and the wire just fell out of it. THAT IS IT. The Coils and Valves also fit many units, not just the E-72, so it makes sense to stock them. The E-72, and all of the Bucher (Monarch) units have been troublefree. There has been little demand for parts, and even less of a demand for Bucher unit repairs in our shop.
